| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Brand | Misenpower | Model | LiFePO4-32700-6.0Ah |
| Chemistry | Lithium Iron Phosphate (LiFePO4) | Cell Format | 32700 cylindrical steel-shell cell |
| Nominal Voltage | 3.2V | Nominal Capacity | 6.0Ah at 0.5C discharge |
| Nominal Energy | Approx. 19.2Wh, calculated | Initial Capacity | ≥6.0Ah under the defined test method |
| Dimensions | Diameter 32.35 ±0.25mm, max. 32.6mm; height 70.5 ±0.3mm, max. 70.8mm | Cell Weight | 141 ±5g |
| Charge Voltage | 3.65V CC-CV | Charge Cut-off Current | 0.30A / 0.05C |
| Standard Charge | 0.5C / 3A CC-CV | Fast Charge | 1C / 6A CC-CV |
| Temperature-Based Cut-off | 2.0V at -20°C to 20°C; 2.5V at 20°C to 45°C; 2.75V at 45°C to 60°C | Recommended Temperature | 20°C to 35°C |
| Maximum Continuous Discharge | 18A / 3C; not intended for long-cycle operation | Maximum Pulse Discharge | 30A for 5 seconds |
| AC Impedance | ≤8.0mΩ at 5% SOC and 1kHz | Cycle Life | ≥2000 cycles with ≥80% capacity retention at 0.5C |
| Charge Temperature | 0°C to 60°C | Discharge Temperature | -20°C to 60°C |
| Storage Conditions | 0°C to 40°C; 10°C to 35°C recommended for long-term storage | Transport/Storage SOC | 5%-50% SOC for transport; 30%-50% SOC recommended for storage |

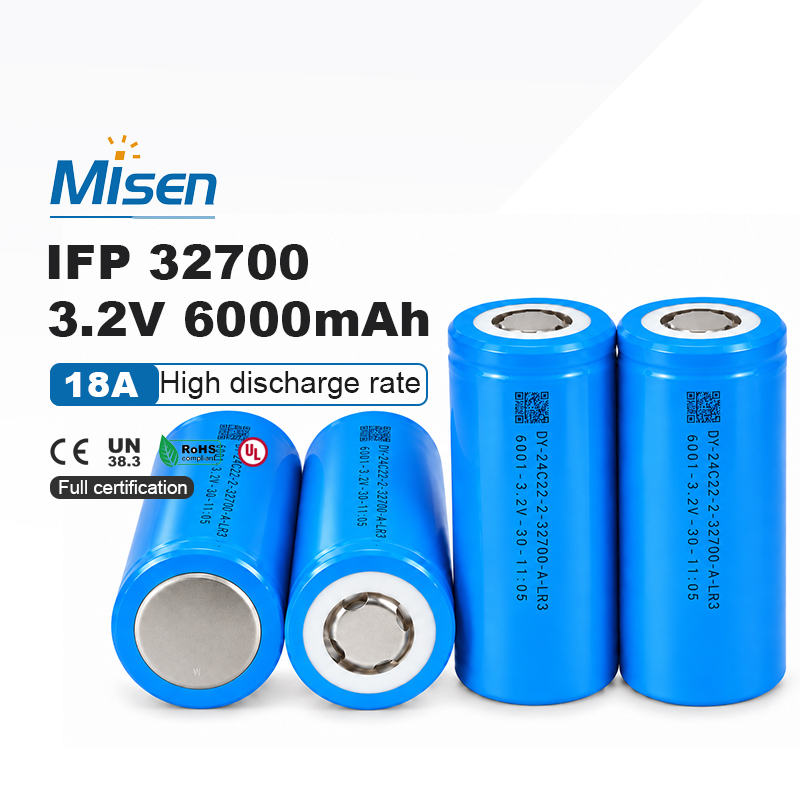

The Misenpower 32700 is a 3.2V 6000mAh rechargeable LiFePO4 cylindrical cell for professional battery-pack integration. It combines approximately 19.2Wh of nominal energy with fast charging up to 1C, maximum continuous discharge up to 18A and a 30A five-second pulse rating. Its defined cycle, temperature and storage performance supports EV, commercial-vehicle, UPS and stationary energy-storage projects.
The cell provides a nominal voltage of 3.2V and 6.0Ah capacity when measured using the defined 0.5C discharge procedure. Its calculated nominal energy is approximately 19.2Wh, providing a scalable building block for series-parallel battery configurations requiring increased voltage, capacity or total stored energy.

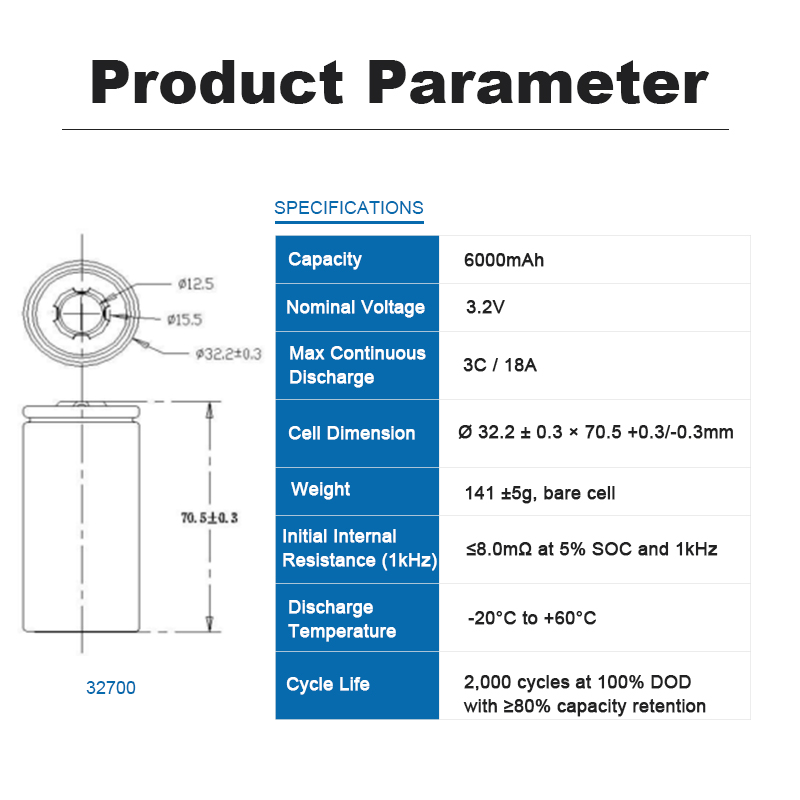

The sleeved cylindrical cell measures 32.35 ±0.25mm in diameter and 70.5 ±0.3mm in height, with maximum limits of 32.6mm and 70.8mm. Its specified weight is 141 ±5g. These controlled dimensions help engineers plan cell holders, insulation, spacing, busbars and enclosure clearances.
Maximum continuous discharge is specified at 18A, equivalent to 3C, while the short-duration rating reaches 30A for five seconds. The datasheet states that the 18A maximum condition is not intended for long-cycle operation. Normal pack current should therefore be selected according to the required service-life target and thermal conditions.
Standard charging uses 0.5C constant current to 3.65V, followed by constant-voltage charging until current decreases to 0.05C. For shorter charging time, the specification supports 1C CC-CV fast charging. Charger and BMS voltage, current and temperature limits must be configured specifically for this cell.
AC impedance is limited to 8mΩ when measured at 5% SOC and 1kHz. Under the specified low-temperature test, discharge capacity remains at least 55% at -20°C, 70% at -10°C and 80% at 0°C. Temperature-based discharge cut-offs must be applied to protect usable life and safety.
The cell is specified to retain at least 80% capacity after 2000 cycles under the defined 0.5C test procedure at 20°C to 30°C. The cycle test charges to 3.65V and discharges to 2.5V. Actual pack life depends on temperature, current, depth of discharge, balancing and charging strategy.
Custom battery pack applications: This 32700 LiFePO4 cell may be considered for electric mobility, engineering vehicles, passenger vehicles, UPS backup power and large energy-storage cabinets. Misenpower supplies cylindrical cells and supports custom pack integration, including cell matching, compatible BMS selection, fusing, welded interconnects, voltage and temperature sensing, insulation, spacing, enclosure design and thermal management. Supporting CE, UN38.3, RoHS and UL documentation can be provided where applicable to the selected product and shipment; availability and scope should be confirmed before ordering.
