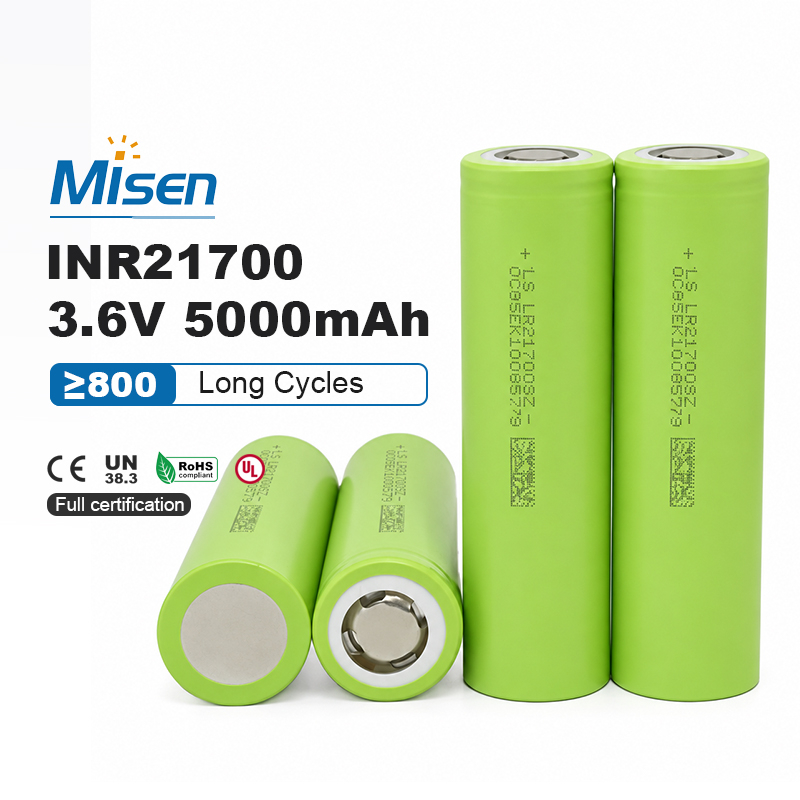

The LISHEN LR2170SZ is a rechargeable NCM lithium-ion cell in the 21700 cylindrical format, designed for integration into professionally engineered battery packs. It provides 5000mAh nominal capacity at 3.60V, equivalent to approximately 18Wh of nominal energy.
With a specified maximum continuous discharge current of 15A at 25°C, the cell balances energy capacity and moderate power capability. Proper charge controls, protection circuitry and thermal management are essential for use in OEM battery pack applications.

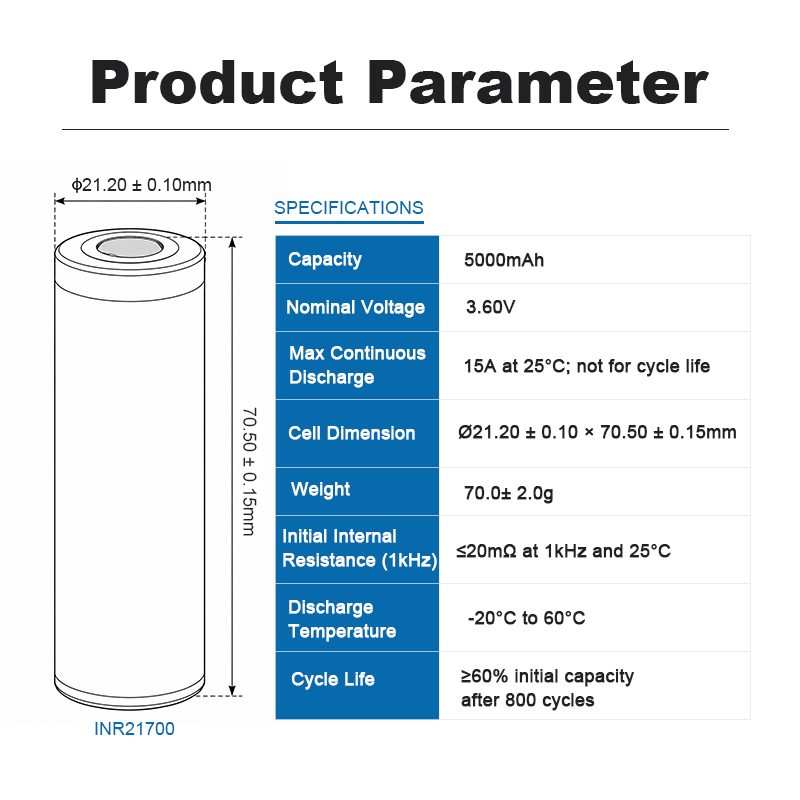

Electrical, mechanical and performance data for the LR2170SZ. Values refer to the specified test conditions; maximum current ratings are not cycle-life ratings.
| Cell Type | 21700 NCM Lithium-ion |
| Nominal Capacity | 5000mAh (0.2C) |
| Minimum Capacity | 4900mAh (0.2C) |
| Nominal Voltage | 3.60V |
| Nominal Energy | Approx. 18.0Wh (calculated) |
| Initial AC Impedance | ≤20mΩ (1kHz, 25°C) |
| Charge Voltage | 4.20V |
| Standard Charging | 1A CC-CV to 4.20V 100mA cutoff at 25°C |
| Maximum Charge Current | 5A at 25°C Not for cycle-life operation |
| Continuous Charge Limits | 0–5°C: 0.5A Above 5–10°C: 1A Above 10–15°C: 1.5A Above 15–25°C: 2A Above 25–45°C: 3.5A Maximum continuous charging current varies with temperature. |
| Maximum Continuous Discharge | 15A at 25°C Not for cycle-life operation |
| Discharge Cutoff Voltage | 2.50V Normal operation |
| Dimensions | Diameter: 21.2 ± 0.2mm Height: 70.5 ± 0.2mm |
| Cell Weight | 70 ± 2g |
| Operating Temperature | Charge: 0 to 45°C Discharge: -20 to 55°C |
| Cell Surface Temperature | Charge: 0 to 50°C Discharge: -20 to 60°C |
| Cycle Life | 800 cycles ≥80% of first-cycle capacity under stated test conditions |
| Cycle Test Conditions | 2.5A charge / 5A discharge 4.20–2.75V at 25°C |
| Rate Performance | ≥85% relative capacity at 15A discharge |
| Shipping State | Below 40% SOC |
Technical note: Maximum charge and discharge ratings are not intended for cycle-life operation. Charging current must follow temperature-dependent limits. This unprotected bare cell requires suitable protection and thermal management when integrated into a battery pack.
With 5000mAh nominal capacity and approximately 18Wh of energy, the LR2170SZ offers substantial energy storage in the standard 21700 cylindrical format for energy-focused battery pack designs.
The cell supports a maximum continuous discharge current of 15A at 25°C, offering a balance of capacity and moderate power. This maximum-current rating is not intended for cycle-life operation.
The stated test result is at least 80% of first-cycle capacity after 800 cycles under defined conditions, including 2.5A charging and 5A discharging at 25°C. Actual service life depends on operating conditions.
Charging is specified from 0°C to 45°C, with maximum continuous charging current adjusted by temperature. Battery pack controls should be configured to follow these limits.
The LR2170SZ is intended for integration into professionally engineered lithium-ion battery packs. These potential applications require electrical, thermal and mechanical validation.
Battery packs for electric bicycles, scooters and other light mobility equipment where the cell's current capability and energy capacity meet system requirements.
Rechargeable power modules for portable equipment, mobile power supplies and battery-powered devices requiring a balance of runtime and discharge performance.
Custom power configurations for industrial instruments, robotic systems and OEM equipment designed around compatible 21700 cylindrical cells.
Verify that pack voltage, charge settings, discharge cutoff, series and parallel configuration, and BMS controls comply with the LR2170SZ specifications.
The 15A continuous-discharge rating applies at 25°C and is not intended for cycle-life operation. Charging must follow temperature-dependent current limits.
The unprotected bare cell requires suitable protection circuitry, cell matching, temperature sensing, insulation, cooling and appropriate welded interconnections.
Note: These examples do not imply manufacturer approval for a particular end product. Final suitability requires application-specific validation.
MISEN Battery supports international B2B inquiries for LISHEN LR2170SZ 21700 lithium-ion cells used in professional battery pack manufacturing and OEM projects.
Contact us for sample or bulk order inquiries, current stock availability, minimum order quantity, pricing and estimated delivery lead times.
Request available product specifications, battery safety information and applicable shipping documents. Document availability and sharing permissions are subject to confirmation.
For custom pack projects, share your required voltage, capacity, discharge current and application. Our team can discuss suitable cell configurations and project feasibility.
Interested in the LISHEN LR2170SZ? To receive a more accurate quotation, include your required quantity, destination country and intended application or battery pack requirements.
Use the inquiry form on this page to contact our sales team.
