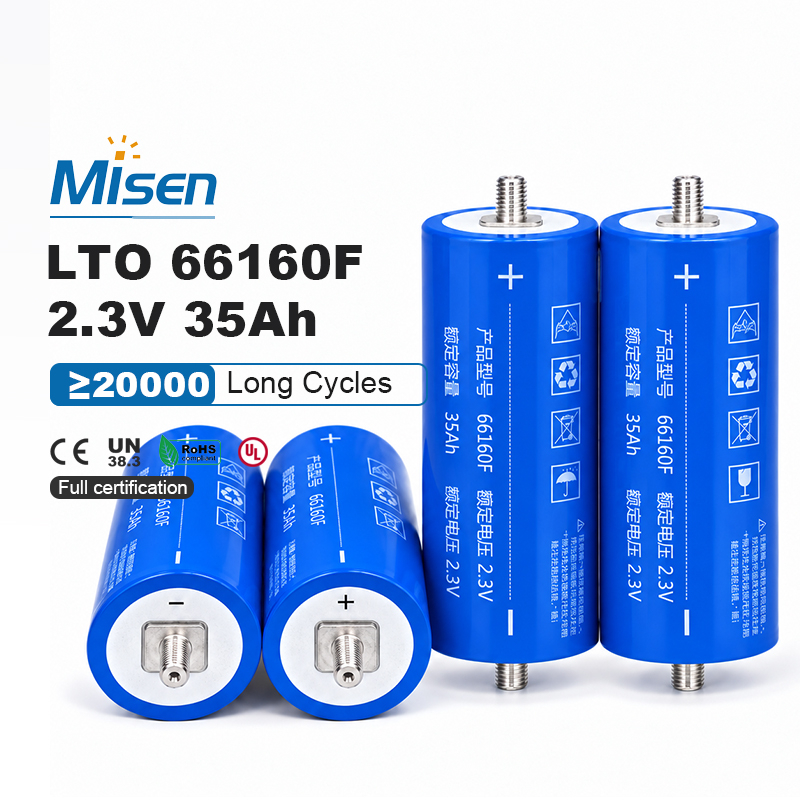

Yinlong LTO66160F 66160 2.3V 35Ah 350A Continuous 700A 10s Lithium Titanate Battery Cell

Quantity:
Availability:





Inquire Add to Basket

Product Description

Key Features

Core Technical Parameters

Parameter	Specification	Parameter	Specification
Manufacturer	Yinlong	Model	LTO66160F
Cell Chemistry	Nano Lithium Titanate (LTO)	Cell Format	Cylindrical
Nominal Voltage	2.3V	Capacity, Minimum / Typical	35Ah / 36.2Ah at 35A, 25°C, CCCV charge
High-rate Capacity	33Ah typical at 150A and 25°C	Typical Energy	84Wh at 35A, 25°C, CC discharge
Maximum Continuous Charge	350A	Maximum Continuous Discharge	350A
Maximum 10-second Current	700A, charge or discharge	10-second Pulse Power	687W discharge / 841W charge at 350A, 50% SOC, 25°C
Internal AC Impedance	0.3mΩ at 1Hz, 10% SOC, 25°C	10-second DC Impedance	0.7mΩ, charge and discharge, 50% SOC, 25°C
Charge Cut-off Voltage	2.9V at -40°C to 55°C	Discharge Cut-off Voltage	1.5V at -40°C to 55°C
Cycle Life at 25°C	>25,000 cycles to 80% capacity, 2C/2C, 100% DOD	Cycle Life at 55°C	>3,000 cycles to 90% capacity, 1C/1C, 100% DOD
Calendar Life	25 years at 25°C	Operating / Storage Range	-50°C to 65°C cell temperature
Cell Dimensions	Ø66 × 160mm, terminal height excluded	Weight / Transportation	1.22kg / Tested to UN38.3

Technical note: The stated 700A limit applies for a maximum of 10 seconds. The BMS must enforce the 1.5V to 2.9V cell-level voltage limits, and actual allowable current should be validated against SOC, temperature, cooling, busbar and terminal conditions. The specified 160mm cell height excludes the terminals; 25°C is identified as the optimal storage temperature.
