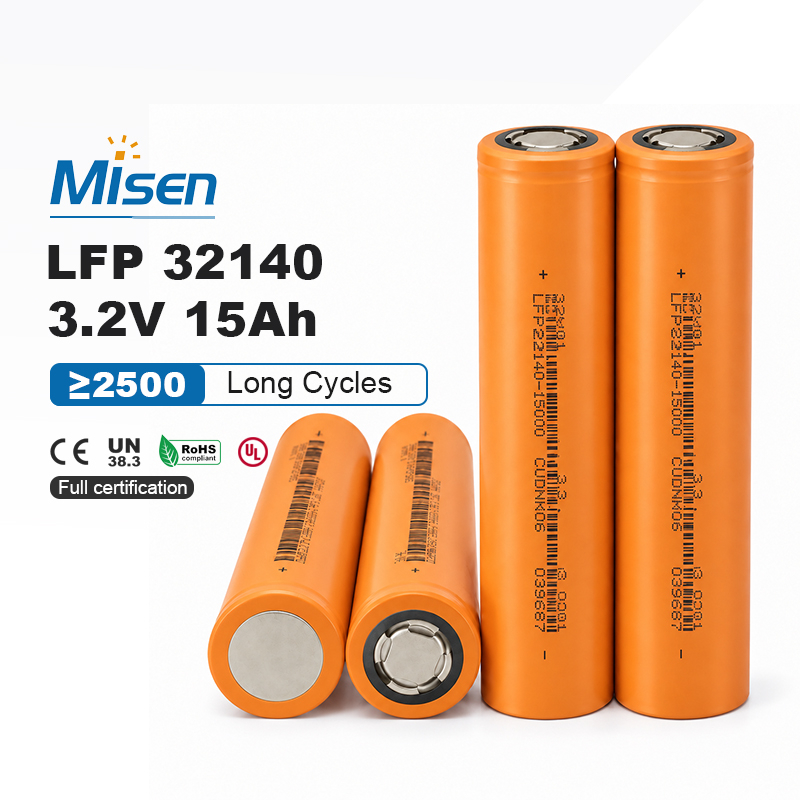

MISEN 32140 3.2V 15Ah 30A Continuous Rechargeable LiFePO4 Battery Cell

Parameter	Specification	Parameter	Specification
Manufacturer	Mianyang Liyuan New Energy Co., Ltd.	Model	LY 32140
Cell type	Rechargeable cylindrical cell; steel shell with PET sleeve	Chemistry	Lithium iron phosphate (LiFePO4), identified in the Chinese specification
Nominal voltage	3.2 V	Calculated nominal energy	Approx. 48 Wh (3.2 V × 15 Ah)
Nominal capacity	15,000 mAh; 0.5C discharge at 25 ± 3°C	Minimum capacity	14,500 mAh; 0.5C discharge at 25 ± 3°C

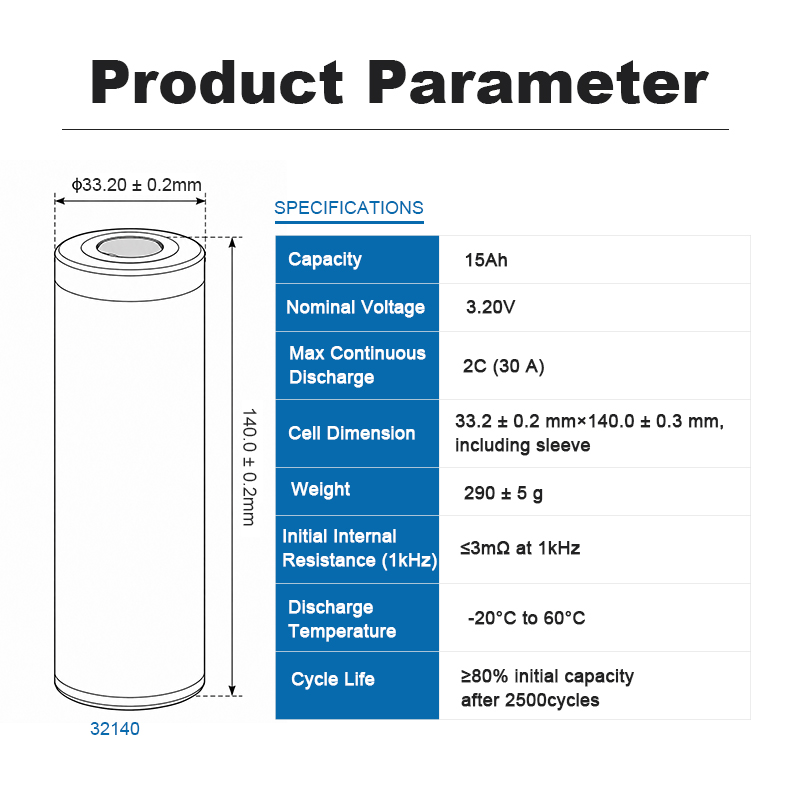

Overall dimensions	Diameter 33.2 ± 0.2 mm × height 140.0 ± 0.3 mm, including sleeve	Cell weight	290 ± 5 g
Standard charge	0.5C (7.5 A) CC/CV to 3.60 V; terminate at 0.05C	Discharge cut-off	2.0 V under the specified discharge methods
Maximum continuous charge	1C (15 A) at 20–45°C; lower limits apply outside this band	Maximum continuous discharge	2C (30 A)
Maximum pulse discharge	6C (90 A) for 10 seconds; not a continuous rating	AC internal impedance	≤3 mΩ at 1 kHz after standard charge
Charge temperature	0–55°C; temperature-dependent current limits	Discharge temperature	−20°C to +60°C
Cycle-life test	≥2,500 cycles to 80% initial capacity; 0.5C charge/discharge, 3.60 V to 2.0 V, standard 25 ± 3°C test conditions	Low-temperature test	≥60% discharge capacity after 4 hours at −10 ± 2°C, under the specified 0.5C test
Shipment state of charge	10–30% SOC, or as agreed with the customer	Specification reference	JS-C-06-002, revision A1, dated 2024-03-04

Technical note: This is an unprotected bare cell, not a finished battery pack. Use a 3.60 V standard CC/CV charge setting; the safety section separately states that charge voltage must not exceed 3.65 V. Maximum continuous charging depends on cell temperature: 0.2C at 0–10°C, 0.5C at 10–20°C, 1C at 20–45°C and 0.5C at 45–55°C. The 6C discharge value applies for 10 seconds only. Verify actual pack current, cell temperatures, dimensions and protection settings before integration.
