| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Manufacturer | Misenpower | Brand | Misen |
| Model | PL60138XCW-E | Chemistry | Lithium titanate / LTO |
| Cell Format | 60138 cylindrical steel-can cell | Reference Dimensions | Approx. Ø60 × 138mm; tolerances not published |
| Nominal Voltage | 2.25V | Rated Capacity | 25Ah; complete test conditions not published |
| Nominal Energy | Approx. 56.25Wh, calculated from 2.25V × 25Ah | Internal Resistance | ≤0.5mΩ; frequency, SOC and temperature not published |
| Charge Cut-Off Voltage | Approx. 2.70V from selected model listings; manufacturer confirmation required | Discharge Cut-Off Voltage | - |
| Pulse Current | - | Reference Cycle Life | 25,000 to 30,000 cycles; model-specific test conditions not published |
| Reference Operating Temperature | -30 to 60°C from third-party 25Ah data | PLANNANO Series Capability | -50 to 65°C general LTO series statement; not a model limit |
| Reference Weight | Approx. 800g; not a manufacturer acceptance value | Terminal Design and Torque | - |

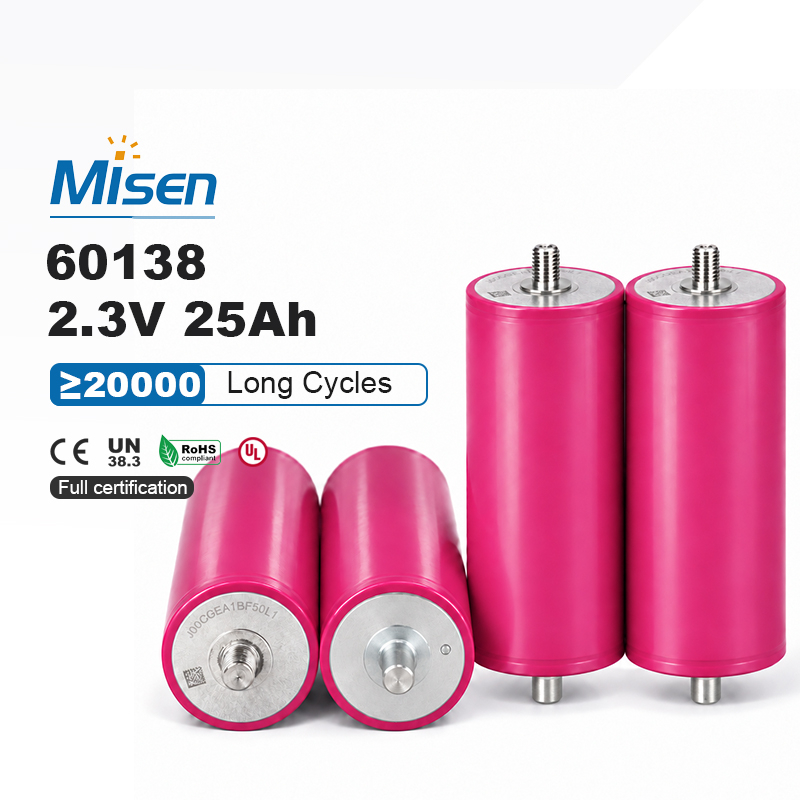

The PL60138XCW-E is a legacy or distribution-channel 60138 cylindrical lithium-titanate cell with consistently reported ratings of 2.25V, 25Ah and no more than 0.5mΩ impedance. Its approximately 56.25Wh energy, large steel-can construction and LTO chemistry make it suitable for evaluation in high-cycle energy storage, industrial power and backup battery systems.
The PL60138XCW-E combines a reported 2.25V nominal voltage with 25Ah capacity, providing approximately 56.25Wh of calculated nominal energy. This voltage differs from some 2.3V or 2.4V market variants, so the exact model rating must be retained when configuring series cell counts and pack voltage.
Multiple model listings identify impedance of no more than 0.5mΩ as a core PL60138XCW-E specification. The measurement frequency, state of charge, temperature and rest period are not disclosed, so incoming inspection should use an agreed method and compare cells under identical conditions.
Lithium-titanate chemistry is associated with high cycle capability, rapid power response and strong low-temperature potential. The PL60138XCW-E requires an LTO-specific charger, BMS voltage window and SOC algorithm. LiFePO4 or NMC protection settings must not be used for this cell.
The 60138 designation corresponds to a large cylindrical steel-can format measuring approximately 60mm in diameter and 138mm in height. A third-party reference lists a weight of about 800g, but exact dimensions, tolerances, terminal design, torque requirements and production weight must be confirmed for the supplied batch.
Third-party and PLANNANO series information references approximately 25,000 to 30,000 cycles for this product class. The available material does not provide model-specific depth of discharge, current rates, temperature, rest periods or end-of-life capacity threshold, so the value must be verified before pack-life or warranty calculations.
Third-party 25Ah information references operation from -30 to 60°C, while PLANNANO describes -50 to 65°C capability for its current LTO series generally. Neither range is confirmed as the approved PL60138XCW-E charge and discharge limit, so model-specific temperature validation remains necessary.
Custom battery pack applications: The PL60138XCW-E may be evaluated for high-cycle energy storage, industrial equipment, backup power and other LTO battery modules. Misenpower supplies cells and supports custom pack integration with an LTO-compatible BMS, pack fuse, approved bolted or welded interconnects, voltage and temperature sensing, cell matching, insulation, spacing, mechanical restraint and thermal design. UN38.3, SDS/MSDS, transport documentation and the applicability of CE, RoHS or UL documentation must be confirmed for the exact cell batch, project and shipment.
